Caratteristiche |
| Part No | 90NR09Q3-M00A20 |
| Model Name | FX517ZM-HN114W |
| EAN Code | N/A |

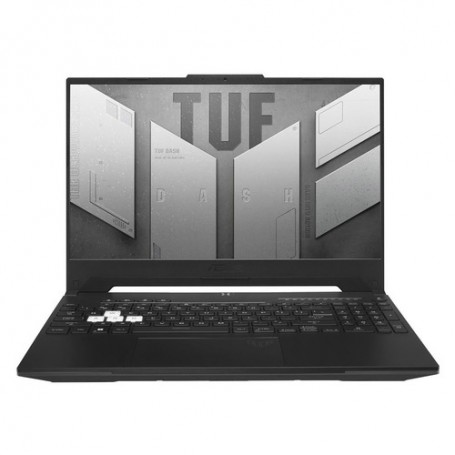

| Marketing Name | ASUS TUF Dash F15 |
| Color | Off Black |
| Dimension (W x D x H) | 35.4 x 25.1 x 1.99 2.07 cm |
| Dimension for keyboard (W x D x H) | N/A |
| Processor | 12th Gen Intel Core i7-12650H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 10 cores: 6 P-cores and 4 E-cores) |
| Weight | 2.00 Kg |
| Chipset | N/A |
| Discrete/Optimus | MUX Switch + Optimus |
| Graphic | NVIDIA GeForce RTX 3060 Laptop GPU |
| Graphic Wattage | 1452MHz* at 105W (1402MHz Boost Clock+50MHz OC, 80W+25W Dynamic Boost) |
| Graphic Memory | 6GB GDDR6 |
| IGPU | Intel Iris X Graphics |
| Panel Size | 15.6-inch |
| Resolution | FHD (1920 x 1080) 16:9 |
| Refresh Rate | 144Hz |
| Response Time (G2G) | N/A |
| Touch Screen | N/A |
| Viewing Angle | 85/85/85/85 |
| Panel Tech | Value IPS-level |
| Brightness | 250 |
| Contrast | 1000:1 |
| NTSC % | 45% |
| SRGB % | 62.5% |
| Adobe % | 47.34% |
| DCI-P3 % | N/A |
| Anti glare | anti-glare display |
| Adaptive-Sync technology | Adaptive-Sync |
| Pantone | N/A |
| Nebula Display | N/A |
| Support Dolby Vision HDR | N/A |
| Support stylus | N/A |
| Total System Memory | 16GB DDR5-4800 SO-DIMM |
| On board memory | N/A |
| Memory Slot | 2x SO-DIMM slots |
| DIMM Memory | 16GB DDR5-4800 SO-DIMM |
| Memory Max. | 32GB |
| Multi-channel memory technology | Support dual channel memory |
| System Storage Installed | 1TB M.2 NVMe PCIe 3.0 SSD |
| M.2 slots support either SATA or NVMe | 2 |
| M.2 SSD Support List | support PCIE Gen4x4 & Gen3x4 |
| How to upgrade memory | Upgradable dedicate Memory door on Bottom side |
| Expansion Slot (includes used) | 2x DDR5 SO-DIMM slots |
| SSD Cache | N/A |
| EMMC/ISSD | N/A |
| Optical Drive | N/A |
| On board Wireless | N/A |
| LAN | 10/100/1000 Mbps |
| Wi-Fi/Bluetooth | Wi-Fi 6(802.11ax)+Bluetooth 5.2 (Dual band) 2*2 (*BT version may change with OS upgrades.) |
| I/O Ports | 1x RJ45 LAN port 1x Thunderbolt 4 support DisplayPort 1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC 2x USB 3.2 Gen 1 Type-A |
| Display output | 1x HDMI 2.0b |
| Audio | 1x 3.5mm Combo Audio Jack |
| Webcam | 720P HD camera |
| Mic | Built-in array microphone |
| Keyboard Type | Backlit Chiclet Keyboard |
| NumberPad | N/A |
| ScreenPad | N/A |
| Aura Sync | Yes |
| Speakers | 2-speaker system |
| Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification |
| Operating System | Windows 11 Home |
| Office | N/A |
| Antivirus | MCAFEE_30D |
| FingerPrint | N/A |
| Security | Kensington Security Slot |
| Battery | 76WHrs, 4S1P, 4-cell Li-ion |
| Power | 6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal |
| Bundled Peripherals | N/A |
| Bundled Games | N/A |
| Additional Accessories | N/A |
